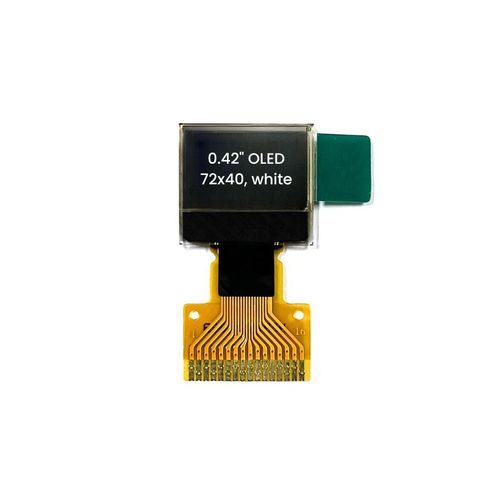

Monochrome display module TOX042TSWPG01OLED72 x 400.42"
Add to favorites
Compare this product
Characteristics
- Type
- monochrome, OLED
- Format
- 72 x 40
- Screen size
- 0.42"
- Other characteristics
- SPI, I2C, for integration
- Width
12 mm
(0.4724 in)- Height
11 mm
(0.4331 in)
Description
TOX042TSWPG01 | 0.42-inch OLED | 72×40 Dots | Monochrome White | I2C/SPI Interface | SSD1315 |
The OLED provides bright white graphics on a black background with fast response along with high contrast visibility from any angle.
The display has a built-in SSD1315 controller, and is RoHS compliant.
Diagonal (inch): 0.42
Resolution (pixel): 72×40
Display Type: PMOLED
Color - : White
Optimal View: Full View
Voltage(V) - 2.8
Module Dimensions (mm) (W x H x D): 12 x 11 x 1.25
Active Area (mm) (W x H): 9.196 x 5.18
Pixel pitch(mm): 0.128 x 0.13
Pixel size(mm): 0.108 x 0.11
Luminance (cd/m2): 430 Typ.
Interface: I2C/SPI
Driver IC: SSD1315
Operational Temperature (°C): -40 ~ +70
Storage Temperature (°C): -40 ~ +85
