OLED display module TOX063TSWIG02
monochrome120 x 280.63"

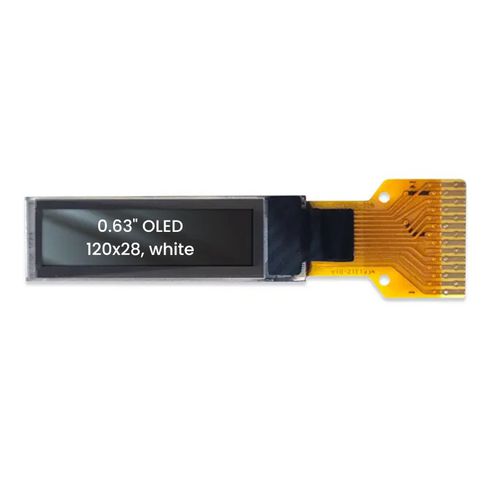

OLED display module - TOX063TSWIG02 - TAILOR PIXELS TECHNOLOGY CO., LTD. - monochrome / 120 x 28 / 0.63"

OLED display module - TOX063TSWIG02 - TAILOR PIXELS TECHNOLOGY CO., LTD. - monochrome / 120 x 28 / 0.63" - image - 2

OLED display module - TOX063TSWIG02 - TAILOR PIXELS TECHNOLOGY CO., LTD. - monochrome / 120 x 28 / 0.63" - image - 3

Add to favorites

Compare this product

Characteristics

Screen type: OLED
Type: monochrome
Format: 120 x 28
Screen size: 0.63"
Applications: for medical equipment
Interface: I2C
Configuration/mounting: integrated
Other characteristics: high-contrast, high refresh rate
Width: 21.54 mm
(0.848 in)
Height: 6.62 mm
(0.2606 in)

Description

TOX063TSWIG02 | 0.63-inch OLED | 120×28 Dots | Monochrome White | I2C Interface | SSD1312 | The OLED provides bright white graphics on a black background with fast response along with high contrast visibility from any angle. The display has a built-in SSD1312 controller, and is RoHS compliant. Diagonal (inch): 0.63 Resolution (pixel): 120×28 Display Type: PMOLED Color - : White Optimal View: Full View Voltage(V) - 2.8 Module Dimensions (mm) (W x H x D): 21.54 x 6.62 x 1.22 Active Area (mm) (W x H): 15.58 x 3.62 Pixel pitch(mm): 0.13 x 0.13 Pixel size(mm): 0.11 x 0.11 Luminance (cd/m2): 270 Typ. Interface: I2C Driver IC：SSD1312 Operational Temperature (°C)：-40 ~ +70 Storage Temperature (°C)：-40 ~ +85

Catalogs

Product Specification Model:TOX063TSWIG02 0.63″ OLED Display Module (120*28)

29 Pages
