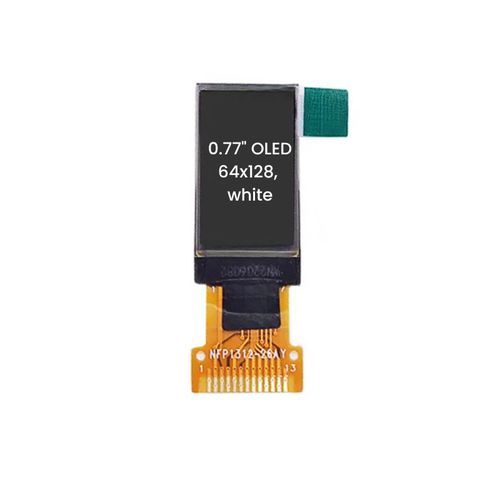

OLED display module TOX077TSWCG01monochrome128 x 640.77"
Add to favorites
Compare this product
Characteristics
- Screen type
- OLED
- Type
- monochrome
- Format
- 128 x 64
- Screen size
- 0.77"
- Applications
- industrial, for medical equipment, time date temperature
- Interface
- SPI
- Configuration/mounting
- integrated
- Other characteristics
- high refresh rate
- Width
12.13 mm
(0.4776 in)- Height
23.6 mm
(0.9291 in)
Description
TOX077TSWCG01 | 0.77-inch OLED | 64×128 Dots | Monochrome White | SPI Interface | SSD1312 |
The OLED provides bright white graphics on a black background with fast response along with high contrast visibility from any angle.
The display has a built-in SSD1312 controller and is RoHS compliant.
Diagonal (inch): 0.77
Resolution (pixel): 64×128
Display Type: PMOLED
Color: White
Optimal View: Full View
Voltage(V): 2.8
Module Dimensions (mm) (W x H x D): 12.13 x 23.6 x 1.22
Active Area (mm) (W x H): 9.26 x 17.26
Pixel pitch(mm): 0.135 x 0.145
Pixel size(mm)：0.115 x 0.125
Luminance (cd/m2)：320 Typ.
Interface：SPI
Driver IC：SSD1312
Operational Temperature (°C)：-40 ~ +70
Storage Temperature (°C)：-40 ~ +85
