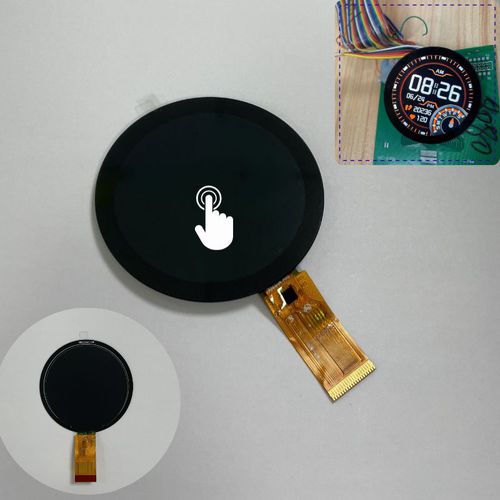

Round display module TTH185BRS-01CLCD/TFTIPScapacitive touch screen
Add to favorites
Compare this product
Characteristics
- Type
- LCD/TFT, IPS, capacitive touch screen
- Format
- 360 x 360
- Screen size
- 1.85"
- Applications
- control, for control panels, information, HMI
- Other characteristics
- MIPI, QSPI, round, 8-bit MPU
Description
TTH185BRS-01C | 1.85 inch IPS TFT LCD | Round | 360×360 Pixels | MIPI/QSPI/8BIT/SRGB | Capacitive Touch |
The small round display with capacitive touch screen, designed especially for handheld devices and smart appliances.
This TFT display provides a full view, people could see the quality display image from any angle.
This Liquid Crystal Display has a built-in ST77916 controller.
Optional custom solution with capacitive or resistive touchscreen.
The material is RoHS-compliant.
Diagonal (inch): 1.85
Resolution (pixel): 360×360
Display Type: IPS
Display Mode: Transmissive
Optimal View: Full View
Touch Screen: Capacitive Touch Screen
Module Dimensions (mm) (W x H x D):55.0×55.0x3.05
Active Area (mm) (W x H): 45.68×45.68
Luminance (cd/m2): 450
Interface: MIPI/QSPI/8BIT/SRGB
Driver IC: ST77916
Operational Temperature (°C): -20 ~ +70
Storage Temperature (°C): -30 ~ +80
