TFT LCD display module TTH392BHV-01

IPS480 x 1283.92"

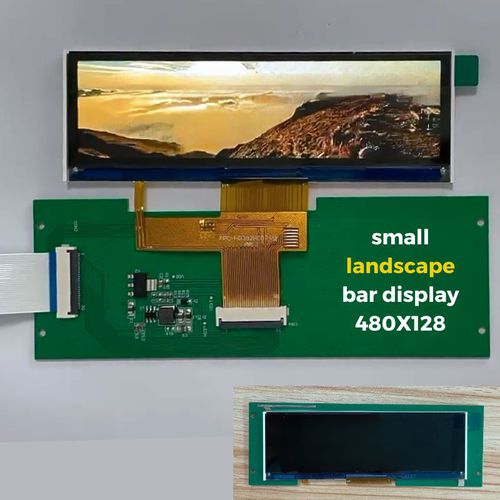

TTH392BHV-01 | 3.92 inch IPS TFT Bar LCD | Landscape 480×128 Pixels | MCU/SPI/QSPI | The bar tape display has unique size ratio, which is designed for terminals requiring a long visual area, such as audio player, and smart home devices. This TFT display provides a landscape view, people can see the quality display image from any angle. This Liquid Crystal Display has a built-in NV3041A controller. Optional custom solution with capacitive or resistive touchscreen. The material is RoHS-compliant. Diagonal (inch): 3.92 Resolution (pixel): 480X128 Display Type: IPS Display Mode: Transmissive Optimal View: Full View Touch Screen: Optional Module Dimensions (mm) (W x H x D): 102.46 ×34.4×3.56 Active Area (mm) (W x H): 95.04*25.34 Luminance (cd/m2)：400 Interface：MCU/SPI/QSPI Driver IC：NV3041A Operational Temperature (°C)：-20 ~ +70 Storage Temperature (°C)：-30 ~ +80
