TFT LCD display module TTG034XRE-02IPShigh-resolution800 x 800
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, IPS
- Format
- high-resolution, 800 x 800
- Screen size
- 3.4″
- Applications
- control, for control panels, information
- Interface
- MIPI, HDMI
- Structure
- round
- Configuration/mounting
- built-in
- Other characteristics
- high-brightness
Description

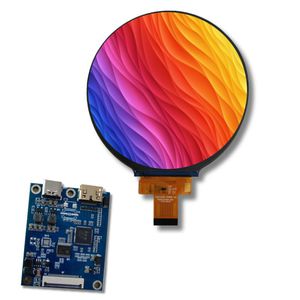

TTG034XRE-02 | 3.4″ IPS TFT LCD | Round | High Resolution | High Brightness| 800×800 Pixels | MIPI | With HDMI option
The round display provides high resolution and is applicable to be embedded in the circle design, like meter interface.
This TFT display provide a full view, people could see the quality display image from any angle.
This Liquid Crystal Display has a built-in JD9365DA controller.
Optional with capacitive touchscreen.
The material is RoHS compliant.
Diagonal (inch): 3.4″
Resolution (pixel): 800×800
Display Type: IPS
Display Mode: Transmissive
Optimal View: Full View
Touch Screen: Optional
Module Dimensions (mm) (W x H x D): 96.6 x99.05×2.67
Active Area (mm) (W x H): 87.6×87.6
Luminance (cd/m2): 1000 (other option: 300)
Interface: MIPI (HDMI board option)
Driver IC: JD9365DA
Operational Temperature (°C): -20 ~ +70
Storage Temperature (°C): -25 ~ +75
