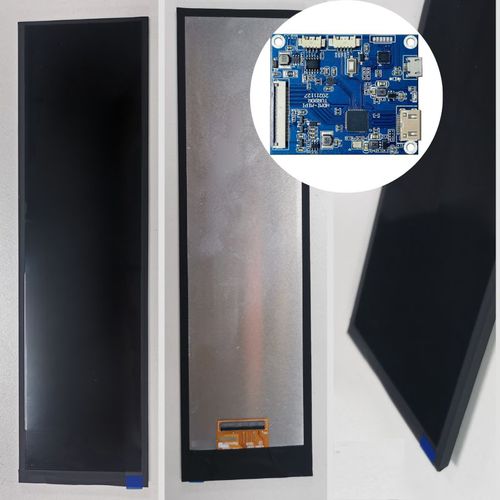

TFT LCD display module TTQ088HVT-01IPS480 x 19208.8"
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, IPS
- Format
- 480 x 1920
- Screen size
- 8.8"
- Applications
- industrial, control, for control panels
- Interface
- MIPI
- Structure
- bar shape
- Width
231.3 mm
(9.1063 in)- Height
64.3 mm
(2.5315 in)- Thickness
4.8 mm
(0.189 in)
Description
TTQ088HVT-01 | 8.8 inch Bar LCD | IPS TFT | Brightness 600 cd/m2 | MIPI | 480×1920 |
The vertical display has unique size ratio, is designed for commercial devices and auto industry.
This TFT display provide a full view, people could see the quality display image from any angle.
Optional custom solution with capacitive touchscreen.
The material is RoHS-compliant.
Diagonal (inch): 8.8″
Resolution (pixel): 480x1920Pixels
Display Type: IPS
Display Mode: Transmissive
Optimal View: Full View
Touch Screen: Option
Module Dimensions (mm) (W x H x D): 231.3×64.3×4.8
Active Area (mm) (W x H): 54.72×218.88
Luminance (cd/m2): 600
Interface: MIPI
Driver IC: TBD
Operational Temperature (°C): -20 ~ +60
Storage Temperature (°C): -30 ~ +80
