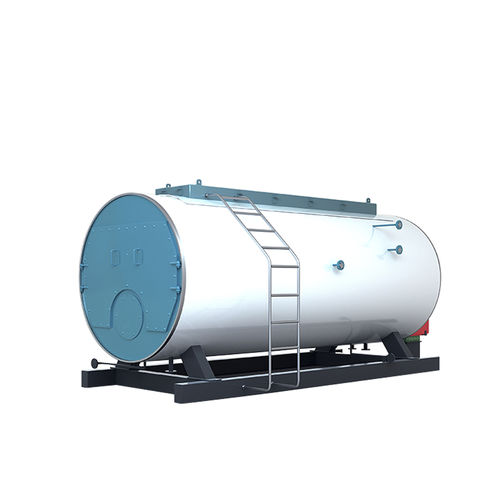

Steam boiler WNS series

hot watergassmoke tube

WNS series gas fired boiler includes gas fired hot water boiler and gas steam boiler for industrial steam generation and supply. Our gas fired boiler is designed and engineered with the three-pass full wet back structure, adopting large furnace and thick smoke pipe to increase the heat absorption of the furnace and effectively save energy and reduce consumption. The threaded pipe and corrugated furnace of this gas fired boiler greatly enhance the heat transfer effect and greatly save fuel consumption. The main gas fired boiler structure includes boiler shell, ripple furnace, reversal chamber, thread smoke tube, etc. The burner brand of our gas fired boiler can be chosen according to user’ s requirement. WNS series gas fired boiler is designed and optimized to produce low pressure steam or hot water with rated evaporation capacity from 1 to 20 ton/hour and rated pressure from 0.7 to 1.6MPa. The design heat efficiency is up to 95%. Features of WINS Series Gas Fired Boiler There can be more heating surface to spare to assure running of full load and overcharge. The gas fired hot water boiler are matched with imported burner of European brand. Proportional control, procedure ignition, automatic blowing and flameout protective device. The burning efficiency is over 99.5%. The furnace shape is fit for the shape of flame, avoiding the flame washing out the heating surface area. The temperature of rear flue chamber is low so that the operators feel comfortable and safe. The gas fired boiler adopts light quality thermal insulation material: aluminum silicate fiber, good heat preservation, less heat lost, high heating efficiency.
