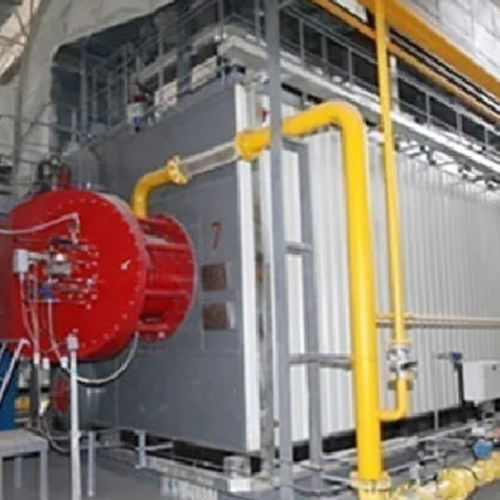

Steam boiler SZS series

hot watergascoal

SZS series gas steam boiler is designed and engineered with D-type arrangement, natural recycling, double-drum water tube boiler. Our SZS series gas steam boiler has the characteristics of compact structure, high burning efficiency, longitudinal drum, full membrane wall structure and slightly positive pressure combustion. The furnace of the SZS gas steam boiler is wrapped by membrane wall, smoke enters the convection bank which is between the upper and lower drum from furnace exit, and then enters the tail heating surface — steel spiral fin economizer. SZS series gas steam boiler is designed and optimized to produce low pressure steam or hot water with rated evaporation capacity from 4 to 75 ton/hour and rated pressure from 0.7 to 2.5MPa. The design heat efficiency is up to 95%. SZS series gas steam boiler can also be applied as gas fired hot water boiler for hot water generation and supply. Applications of SZS Series Gas Steam Boiler SZS series gas steam boiler is widely used in chemical industry, paper making industry, textile industry, food industry, pharmaceuticals industry, heating industry, construction industry, etc. About TAISHAN Group As the National Hi-tech Enterprise certificated by the government and the 500 Largest Machinery Industrial Enterprises, TAISHAN Group had been dedicated in supplying turn key coal fired boiler and industrial boiler solutions to worldwide customers since in 1994. TAISHAN Group had passed Class A Manufacture License of boiler, Class A1, A2 & A3 Design and Manufacture License of pressure vessel, Installation License of Class I boiler and various pressure vessel, ISO9001, ISO14001, OHSAS18001, ASME and PCCC certification.
