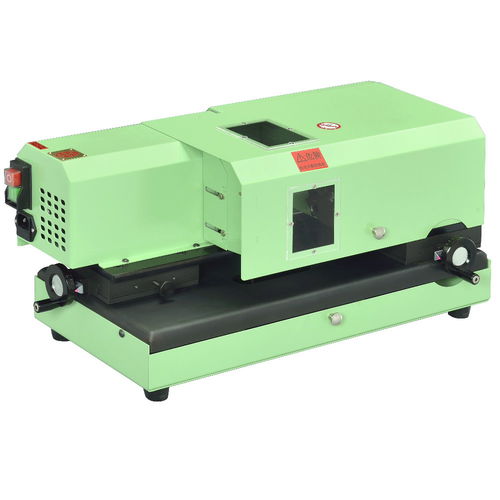

Metal cutting machine GS-33discgrindingsingle-phase
Add to favorites
Compare this product
Characteristics
- Material
- for metal
- Product handled
- disc
- Associated function
- grinding
- Phase
- single-phase
- Other characteristics
- high-performance
- Tube diameter
Min.: 16 mm
(1 in)Max.: 32 mm
(1 in)- Overall length
550 mm
(22 in)- Overall width
270 mm
(11 in)- Height
260 mm
(10 in)- Weight
40.1 kg, 42 kg
(88.41 lb, 92.59 lb)
Description
Cutting length of work-piece end: 20mm/max
Convenient Design: X,Y axis workable, professional structure enhanced, high- performance cutting accuracy
Cutting length of work-piece end: 20mm/max.
Patent Radius cutting by Dual-motor driver
The hardened treatment steel is controlled well in virtue of natural dissipation characteristic, cutting time is greatly shortened as the work-piece is simultaneously rotated while cutting.
Quick-Work-Changing System
The work-piece is quickly exchanged with prime quality 3-Jaw chuck system.
Cooling System
Dry cooling is able to connect with various pressurized air and vacuum cleaner achieved perfect cooling effect.
Cutting Disc
SD#100 for carbide, CBN100 for HSS
Optional Grinding Wheel
SD#100 width 5mm, 10mm for carbide, CBN#100 width 5mm, 10mm for HHS.
