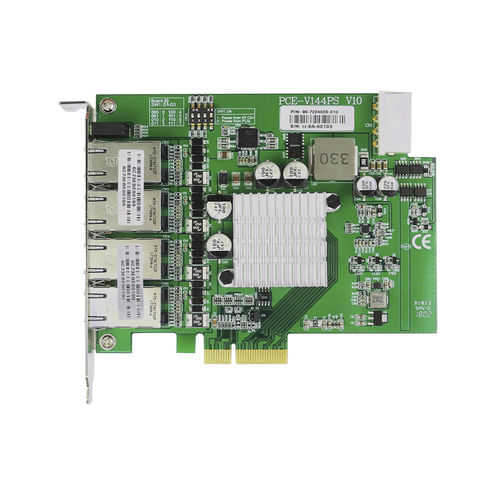

PCI Express Card PCE-V-PS series

The PCE-V144PS, PCI Express x4 Gen 2 PoE (Power Over Ethernet) frame grabber, supports 4- Ch. independent Gigabit Ethernet ports for multiple GigE vision device cameras for industrial automatic application with reliable connection by CAT-5e or CAT-6 cable. It supports 9.5KB jumbo frame. PCE-V144PS is in compliant with IEEE 802.3at which can support 25.4W for each port. The PoE technology in the PCE-V144PS provides network cables to carry electrical power. PoE power comes from the either PCI Express bus or 4-pin 12VDC power connector. Features ● PCI Express x4 compliant ● Intel Server-grade I350 Ethernet Controller ● 4 independent Gigabit Ethernet Ports ● IEEE 802.3at Power over Ethernet standard ● Dimesions: L-150 x W-111.2 mm PoE Bus interfacePCI Express x4 Gen 2 Ethernet controllerIntel I350 Ethernet controller Number of port4 Jumbo frameSupport 9.5KB jumbo frame Link aggregation(LAG)Present ConnectorRJ45, CAT-5e or CAT-6 cable PoE capabilityIn compliant with IEEE 802.3at. Each port up to 25.4W power PoE standardPowered Device(PD) Auto-detection and classification Isolated protection2.25KV isolation on LAN and power General Specifications4-lane 2 Gb/s PCI Express Gen 2 Power consumption3.3VDC at Max. 1.2A from PCI Express bus PoE : 12VDC at Max. 9.6A from PCI Express bus or 4-pin 12VDC power connector Working temperature0 to 60℃
