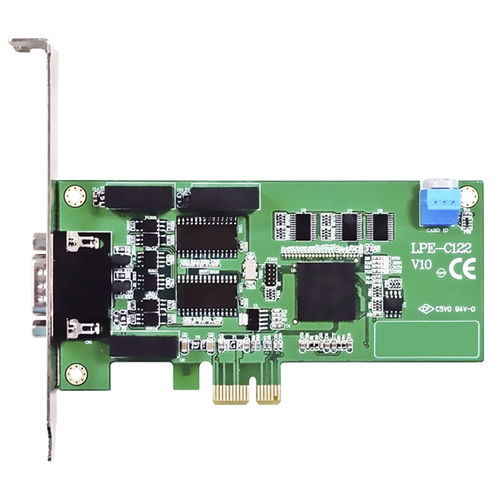

CAN Bus network card LPE-C122
PCI Expressindustrial

CAN Bus network card
CAN Bus network card
Add to favorites
Compare this product


Characteristics

Bus standard
PCI Express
Bus
CAN Bus
Applications
industrial

Description

LPE-C122 is a 2-port isolated CAN Bus card which is designed for users who need to use CAN 2.0 A,B Protocol. LPE-C122 has two independent CAN communication operation. Each port is up to 1 Mbit/s programmable transfer rate. Features ● PCI Express x1 compliant ● Low profile form factor ● CAN 2.0 A,B Protocol ● Two independent CAN communication operation ● Up to 1 Mbit/s programmable transfer rate on each port ● 120 ohm termination resistor selected by jumper CAN Number of port: 2 CAN controller: SJA1000 Protocol: CAN 2.0 A,B Speed: 1Mbps Signal support: CAN_H, CAN_L, GND Isolation voltage: 3750Vrms Termination resistor: 120 ohm selected by jumper Connectors: DB15 Male General Specifications: 1-lane 2.5 Gb/s PCI Express Power consumption: 3.3VDC at 100mA, 12VDC at 100mA typical Working temperature: 0 to 60℃
