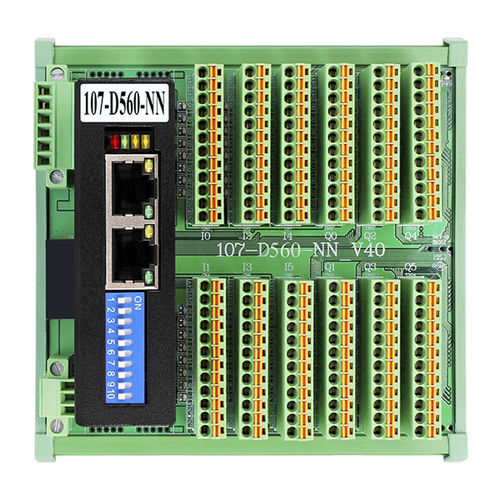

Slave I/O module 107-D5 series

digitalRJ45RS-485

107-D5xx Series is a 96-Channel Digital I/O Motionnet® slave module. With CAT5 cable, 107-D5xx Series can be connected serially. It also equipped with RJ45 phone jack for easy installation and LED for effortless diagnosis. Features ● 96-Ch. Motionnet® Digital I/O slave modules ● Max. 20Mbps transfer rate ● Easy installation with RJ45 phone jack and LED diagnosis ● Pluggable terminal block with spring plug connectors ● DIN rail mounting (L-122 x W-125 x H-77 mm) Motionnet® Serial interface: Half duplex RS-485 with transformer isolation Cable type: CAT5 UTP/STP Ethernet cable Surge protection: 10KV Transmission speed: 2.5Mbps, 5Mbps, 10Mbps and 20Mbps I/O isolation voltage: 3750Vrms Input types: NPN Input impedance: 5.6KΩ/0.5W Input current: ±5mA (Max.) Output types: NPN open collector darlington transistors Switch capacity: Each output Ch. is 350mA at 24VDC Response time: On to Off, about 50μs; Off to On, about 10μs Over current protection: 3A (Max.) for each port (8-Ch.) General Power input: 9VDC to 36VDC Power consumption: 6W typical Working temperature: 0 to 60°C
