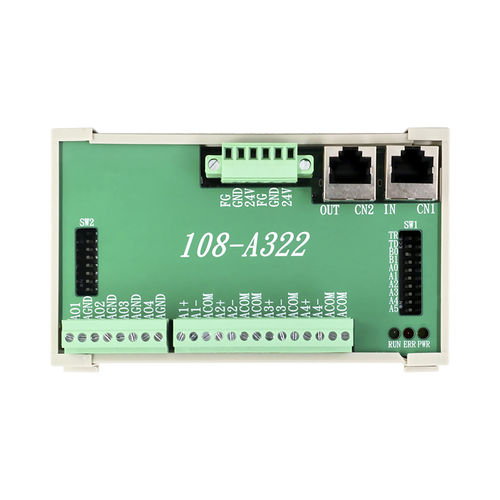

Slave I/O module 108-A322analogRJ45RS-485
Add to favorites
Compare this product
Characteristics
- Signal type
- analog
- Bus
- RJ45, RS-485
- Number of inputs/outputs
- 8 analog inputs, multi-channel, 4 analog outputs
- Type
- distributed
- Mounting
- DIN rail
- Other characteristics
- slave
Description
Features
● 8-Ch. Analog Input and 4-Ch. Analog Output Motionnet® slave modules
● Max. 20Mbps transfer rate
● Easy installation with RJ45 phone jack and LED diagnosis
● Connectors with screw terminal block
● DIN rail mounting (L-77 x W-124 x H-32 mm)
Motionnet®
Serial interface: Half duplex RS-485 with transformer isolation
Cable type: CAT5 UTP / ST P Ethernet cable
Surge protection: 10 KV
Transmission speed: 2.5Mbps, 5Mbps, 10Mbps and 20Mbps
I/O isolation voltage: 3750 Vrms
ADC / DAC Converter -
Effective resolution: 16 bits
Input impédance: 20MQ
Input range: ±10V, ±5V, 0-10V, 0~5V, 0~20mA
Output impédance: 0.30
Output range: ±10V, ±5V, 0-10V, 0~5V, 0~20mA
Accuracy: Al: ±0.2%/AO: ±0.2%
General
Power input: 18VDC to 36VDC
Power consumption: 3W typical
Working température: 0 to 60°C
