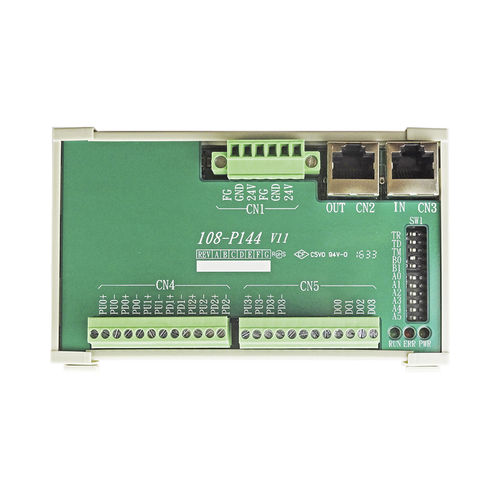

Slave I/O module 108-P144

digitalRJ45RS-485

108-P144 is a 4-Channel Pulse Counter Motionnet® slave module. The transfer rate is up to Max. 20Mbps. With CAT5 cable, 108-P144 can be connected serially. It also provides programmable input filter. Features ● 4-Ch. up / down 32-bit Counter Motionnet® slave modules ● Max. 20Mbps transfer rate ● Easy installation with RJ45 phone jack and LED diagnosis ● Programmable input filter ● DIN rail mounting (L-77 x W-124 x H-34 mm) Motionner® Serial interface: Half duplex RS-485 with transformer isolation Cable type: CAT5 UTP / ST P Ethernet cable Surge protection: 10 KV Transmission speed: 2.5Mbps, 5Mbps, 10Mbps and 20Mbps I/O isolation voltage: 3750 Vrms Encoder - Counter Ch.: 4-Ch. independent 32-bit counter Counter Input type: Isolated Isolated input voltage: Logic level 0 : 1V Max.; Logic level 1 : 24V Input frequency: 5Hz ~ 5MHz Function mode: Counter, Frequency, Period Input filter: 1ps ~ 65,535ps Output type: Open collector General Power input: 18VDC to 36VDC Power consumption: 1.5W typica Working température:0 to 60°C
