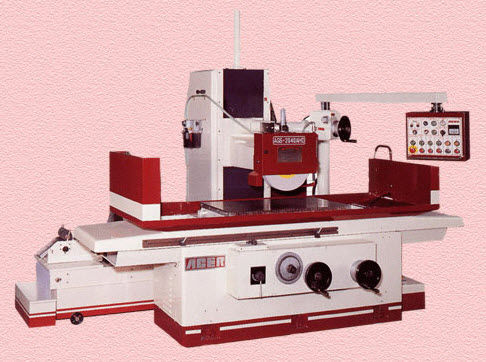

Surface grinding machine AGS-2060AHD

for metal sheetscolumn typeCNC

Column type movement machine. One V and one flat table slideways are coated with Turcite-B. Reinforced column with Meehanite cast iron allows for heavy duty grinding. Double-V crossfeed ways are laminated with Turcite-B. Recirculating auto lubrication system ensures all moving parts are properly lubricated. Spindle uses four Class 7 high precision angular contact ball bearing. They are sealed and greased for life. Enlarged hydraulic tank with dual pump design allows for accurate downfeed and smooth table movement. Hydraulic temperature is kept constant by a separated cooling system. This is to make sure oil temperature will not rise more than 20° over room temperature. Mechanical downfeed designed for easy maintenance. V 3 graded 10 HP spindle motor. Maximum grinding capacity is 20" x 60". Front setting crossfeed dials allow users to set work piece distance without moving away from control panel.
