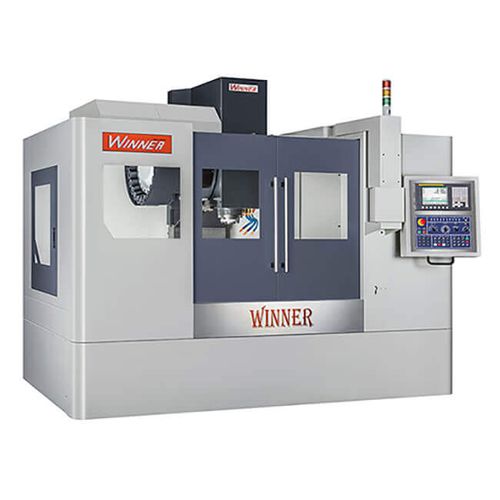

3-axis CNC machining center VMC-E850-E1000

verticalBT 4024 tools

X/Y axes adopt heavy duty linear ways for E type machine but Z axis boxway which has been precisely ground by handcraft ; Not only to guarantee the smoothly movement on X-Y axes, but also not losing any rigidity consideration of while Z-axis machining and moving of its work head. A central rod guides the counterweight. It ensures no vibration effect for Z axis high speed feed-rate and cutting accuracy. High rigid (ball-screw) provides reliable transmission for high speed processing. Superior rigidity structural offers to achieving precision and lasting performance in heavy cutting applications. Table Table size - mm - 1000x560 - 1150x560 T slots - mm - 18x5x100 - 18x5x100 Travel Spindle nose to table surface - mm - 120~680 - 120~660 Spindle Spindle transmission - - Belt type - Belt type Feed X-Y-Z MOTOR(Fanuc) - kw - 1.8/1.8/2.5 - 2.5/2.5/2.5 X-Y-Z motor(Mitsubishi) - kw - 2/2/3 - 2/2/3 X-Y-Z Cutting feed rate - m/min - 10 - 10 ATC System ATC type. - - Arm type - Arm type Max.tool diameter - Ø(mm) - Ø100 - Ø100 Max.tool length - mm - 200 - 300 Rail Type Rail Type - - - 3-axes Boxways - 3-axes Boxways Dimensions&others Power consumption - KVA - 15 - 15 Air pressure required - kfg/CM² - 6-8 - 6-8
