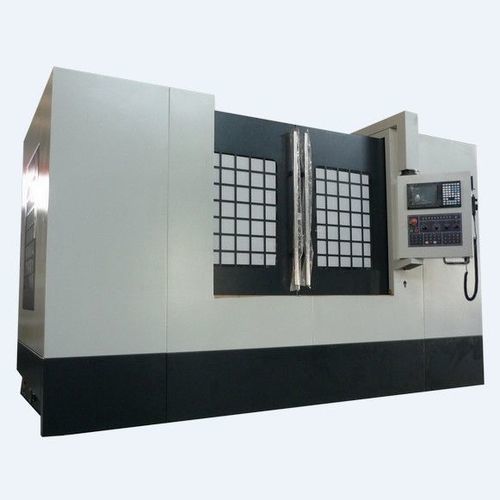

5-axis CNC machining center HCL-1400verticalbridgeBBT40
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Structure
- bridge
- Spindle mount
- BBT40
- Number of tool stations
- 24 tools
- Other characteristics
- direct-drive
- X travel
1,400 mm
(55.12 in)- Y travel
650 mm
(25.59 in)- Z travel
650 mm
(25.59 in)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 1,200 rpm
(7,540 rad.min-1)- Power
11 kW, 15 kW
(14.96 hp, 20.39 hp)- Table rotation (C axis)
360 °
- Work feed X-axis
10 m/min
- Work feed Y-axis
10 m/min
- Work feed Z-axis
10 m/min
- Table load capacity
1,200 kg
(2,646 lb)- Tool weight (max)
10 kg
(22 lb)- Weight
Min.: 8,200 kg
(18,077.91 lb)Max.: 8,500 kg
(18,739.29 lb)- Overall length
380 cm
(149.6 in)- Overall width
300 cm
(118.1 in)- Overall height
350 cm
(137.8 in)
Description
【5-axis CNC Vertical machining center/ bridge structure】
- Proven 5-axis tool paths in industry with advanced control over all aspects.
- A unique the bridge-type mechanical structure which make Multi-sides processing easily.
- Highlights the machine's operational flexibility for special angle or curve machining.
