Electric winch DB-30/0.25hydraulicmooring
Add to favorites
Compare this product
Characteristics
- Operation
- electric, hydraulic
- Type
- wire rope
- Application
- mooring
- Capacity
30 t
(33.1 us ton)- Speed
8,000 mm/min
(5.2 in/s)
Description

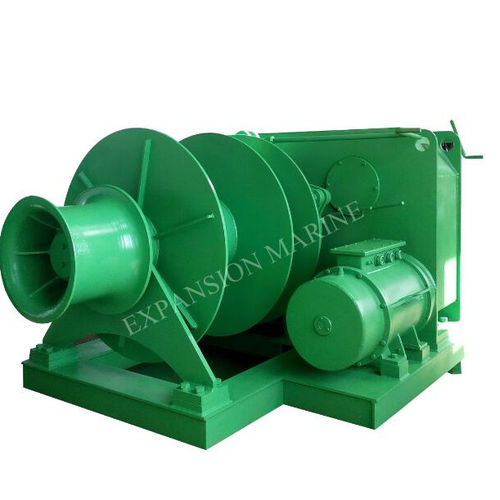

30T ELECTRIC SINGLE DRUM MOORING WINCH
Mooring winch is widely used in mooring and vessel approaching.
The nominal speed is around 9-12m/min with drum capacity about 100-250m.
The driving mode is depended on required load.
Usually for small load, winch can be driven by electric motor. Variable speed, two speeds and three speeds are available for option.
For big load, winch can be driven by hydraulic motor with hydraulic power unit which can work smoothly, and no impact to power supply system.
Mooring winches are usually equipped with local control.
30T electric single drum mooring winch
Technical specifications:
Working load: 30T;
Working speed: 8m/min;
Holding load: 600KN;
Drum capacity: PP64mmx200m
