Manual winch YMB-17.5hydraulicchainmooring
Add to favorites
Compare this product
Characteristics
- Operation
- manual, hydraulic
- Type
- chain
- Application
- mooring
- Capacity
18.3 t
(20.2 us ton)- Speed
15,000 mm/min
(9.8 in/s)
Description
62MM HYDRAULIC ANCHOR WINDLASS MOORING WINCH
By combining windlass and winch, equipment can fulfil anchoring and mooring functions.
Following arrangement can be chosed:
-Combined windlass winch with with single gypsy and single mooring drum
-Combined windlass winch with double gypsy and single mooring drum
-Combined windlass winch with single gypsy and double mooring drum
-Combined windlass winch with double gypsy and double mooring drum
-Single warping end, double warping end or without warping end is optional

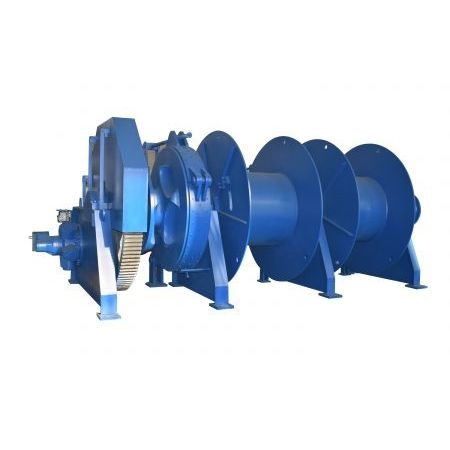

62mm hydraulic combined windlass and mooring winch
Technical specifications:
Chain wheel
Dia. of chain: 62mm,AM3
Working load: 18.26T
Overload Force : 27.39T
Holding Load : 109.55T
Brake : Manual Operated
Clutch : Manual Operated
Drum
Drum capacity: pp64mmx220m
2. Working load and speed: 12Tx15m/min
3. Brake : Manual Operated
4. Clutch : Manual Operated
