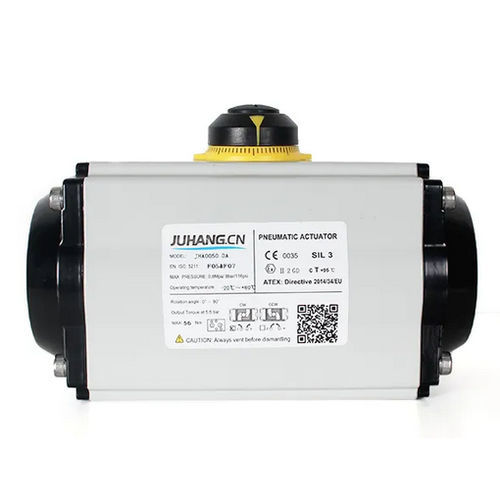

Rotary actuator JHA0012 DA - JHA8000 DA
pneumaticrack-and-piniondouble-piston

rotary actuator
rotary actuator
rotary actuator
rotary actuator
rotary actuator
Add to favorites
Compare this product


Characteristics

Movement
rotary
Type
pneumatic
Technology
piston, rack-and-pinion, cylinder, double-piston
Configuration
double-acting
Material
aluminum, alloy
Norms
ISO, VDI/VDE 3845
Protection class
IP68, maintenance-free, waterproof, dust-proof, ATEX, explosion-proof
Applications
industrial, for medical equipment, for construction equipment, for the oil and gas industry, damper, control, for ball valves, for semiconductors, for ball valves, for butterfly valves, chemistry, for throttle valve, for washdown applications
Other characteristics
high-speed, compact, precision, high-performance, fast response time, mechanical, wear-resistant, custom, low-friction, anti-corrosion, high-torque, ATEX, high-efficiency, quarter-turn, NAMUR, adjustable-stroke
Pressure

Min.: 2 bar
(29 psi)

Max.: 8 bar
(116 psi)

Torque

Min.: 5 Nm
(3.688 ft.lb)

Max.: 13,187 Nm
(9,726.232 ft.lb)

Rotation angle

Min.: 0 °

Max.: 90 °

Ambient temperature

Min.: -60 °C
(-76 °F)

Max.: 150 °C
(302 °F)

Description

Maintenance-free pneumatic actuator is a pneumatic actuator powered by compressed air, driven by the linear motion of the piston rack and pinion to the gear drive of the output shaft, with rotary stroke output. Widely used in the ball valve, butterfly valve, plug valve and other angular stroke valve switching and adjustment, can also be applied to other rotary occasions, is the ideal device to achieve industrial pipeline automation control 2. Product Parameter (Specification) Application:Ball valve, butterfly valve, plug valve and other valv Cylinder body material:Aluminum alloy (surface coating: hard anodized) End cover material:Die-casting aluminum alloy (surface coating: powder spraying) Air source control:Through filtered compressed air, no need lubricate oil,the oil must suit for NBR under lubricated condition. Applicable ambient temperature:Standard High temperature -15℃~120℃ Flange standard:ISO 5211 Service life:Maintenance-free and low friction , switch service life more than 1 million times. 3.Product Features maintenance-free pneumatic actuatorhave the below characteristics: ●Structure : compact rack and pinion pneumatic actuator. ●Low friction ,long service life and the switching times up to 1000,000 times. ●Applied to angular stroke valves, ball valves, butterfly valves, plug valves and other valves. ●Mounting flange in accordance to DIN/ISO5211,control valve with NAMUR standard. ●High quality aluminum alloy material, surface coating by hard anodized ,
