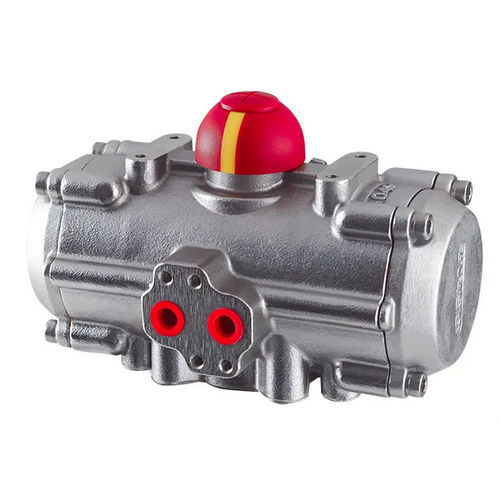

Single-acting actuator JHS series
rotarypneumaticrack-and-pinion

single-acting actuator
single-acting actuator
single-acting actuator
single-acting actuator
single-acting actuator
single-acting actuator
Add to favorites
Compare this product


Characteristics

Movement
rotary
Type
pneumatic
Technology
rack-and-pinion
Configuration
single-acting
Material
stainless steel
Norms
ISO, VDI/VDE 3845
Protection class
IP68, maintenance-free, ATEX, rugged, explosion-proof
Applications
for process automation, industrial, for medical equipment, for construction equipment, damper, control, for ball valves, for butterfly valves, for the oil and gas industry, chemistry, for the aerospace industry, for the semiconductor industry
Other characteristics
standard, compact, control, high-performance, high-speed, high-efficiency, backlash-free, quarter-turn, ATEX, anti-corrosion, NAMUR, flange-mounted, adjustable-stroke, fast response time
Pressure

Max.: 8 bar
(116 psi)

Min.: 2 bar
(29 psi)

Torque

Max.: 8,793 Nm
(6,485.384 ft.lb)

Min.: 0 Nm
(0 ft.lb)

Rotation angle

Max.: 90 °

Min.: 0 °

Ambient temperature

Max.: 150 °C
(302 °F)

Min.: -60 °C
(-76 °F)

Description

Single acting stainless steel pneumatic actuator, with higher corrosion resistance, provides more options for special using environments 2. Product Parameter (Specification) Structure:Rack and pinion structure Application: ball valve, butterfly valve, plug valve and other valves Cylinder body material:Stainless steel. Control air source:Through filtered compressed air, no need lubricate oil,the oil must suit for NBR when in lubricated condi Flange standard:ISO 5211 / DIN3337 Operating temperature: Standard 3.Product Features Double acting stainless steel pneumatic actuator have the below characteristics: ●Structure: compact rack and pinion pneumatic actuator. ●Used for angular stroke valves, ball valves, butterfly valves, plug valves and other valves. ●Mounting flange in accordance to DIN/ISO5211,DIN3337,control valve with NAMUR standard. ●Cylinder body material:Stainless steel. ●Certificate obtained : ATEX, CE, SIL3, ISO9001:2015 certificate. ●High-end products, excellent quality, complete certification system. ●All products in the factory undergo a rigorous testing, each individual is marked with tracking code for quick identification and complete tracking service.
