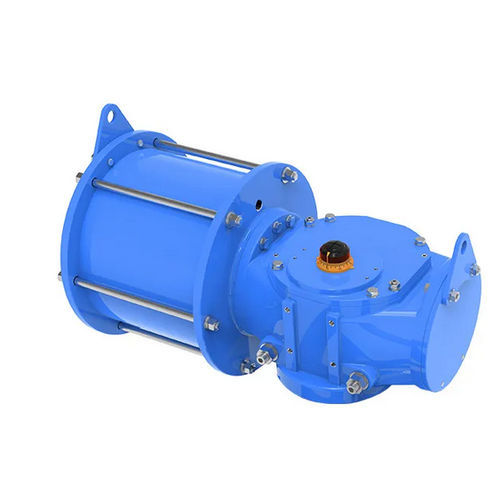

High-torque actuator rotarypneumaticScotch yoke
Add to favorites
Compare this product
Characteristics
- Movement
- rotary
- Type
- pneumatic
- Technology
- Scotch yoke
- Configuration
- double-acting
- Material
- steel, alloy
- Norms
- ISO, VDI/VDE 3845
- Protection class
- IP67, maintenance-free, ATEX, explosion-proof
- Applications
- industrial, for process automation, for ball valves, for butterfly valves, for the semiconductor industry, for the oil and gas industry, control
- Other characteristics
- flange, high-performance, low-friction, high-torque, high load capacity, quarter-turn, NAMUR, corrosion-resistant, flange-mounted, powerful, wear-resistant, adjustable-stroke
- Pressure
Min.: 3 bar
(43.51 psi)Max.: 8 bar
(116.03 psi)- Torque
Min.: 0 Nm
(0 ft.lb)Max.: 250,000 Nm
(184,390.537 ft.lb)- Ambient temperature
Min.: -60 °C
(-76 °F)Max.: 150 °C
(302 °F)
Description
High torque scotch yoke actuators have flexible modular combination design, pneumatic module, hydraulic module, and manual module can be selected and replaced according to the site conditions. There are single-acting and double-acting forms of action, applicable for butterfly valves, ball valves, plug valves, etc. to do 90° angle stroke valve control.
High torque scotch yoke actuator’s accessories’ installing holes all comply with the standard, easy to install limit switches, positioners and other accessories. Standard connection size: the flange size of the high torque scotch yoke actuator connected to the valve conforms to international standards, which is convenient for customers' installation, disassembly, and replacement.
