Ball valve T20-B3-Afor controlfor water
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Function
- for control
- Media
- for water
- DN
0.5 in, 0.75 in, 1 in
- Pressure
1,000,000 Pa
(145 psi)- Temperature
Min.: -15 °C
(5 °F)Max.: 50 °C
(122 °F)
Description

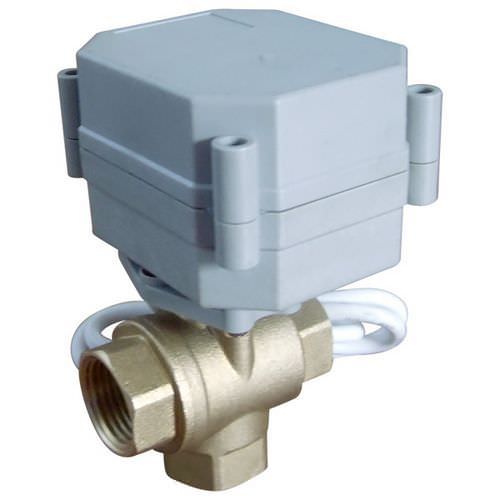

The Tonhe T20-B3-A is a 3-way motorized ball valve. This credible brand valve from China is ideal for water treatment, water meters and water heaters. The NPT/BSP 3/4-way T type brass valve operates at a voltage of 5VDC, 12V/24VDC and 9-24VAC/DC. It has a pressure of 1.0Mpa, 2Nm torque, an on/off time of 5 seconds, a metal gear, IP67 protection, 2/3/5 control wires, a PTFE floating seal with no leakage and a working life to 100,000 times.
The 500mA current is suitable for battery driving. The valve operates in an environment temperature of -15℃-50℃ and liquid temperature of 1℃-90℃.
