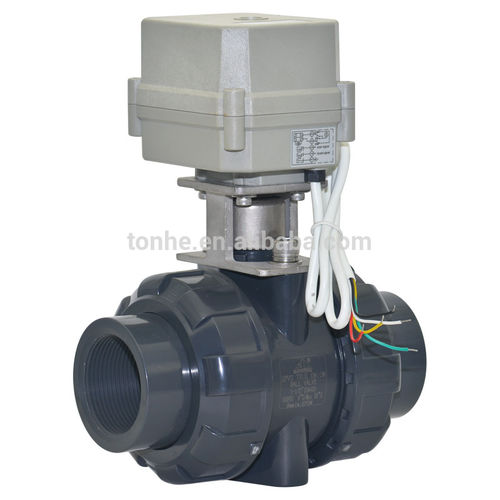

Ball valve CE RoSH Motorized PVC ball valve
electrically-operatedfor airIP67

Ball valve - CE RoSH Motorized PVC ball valve - Taizhou Tonhe Flow Control Equipment Co.,ltd - electrically-operated / for air / IP67
Ball valve - CE RoSH Motorized PVC ball valve - Taizhou Tonhe Flow Control Equipment Co.,ltd - electrically-operated / for air / IP67
Ball valve - CE RoSH Motorized PVC ball valve - Taizhou Tonhe Flow Control Equipment Co.,ltd - electrically-operated / for air / IP67 - image - 2
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
electrically-operated
Media
for air
Body
IP67, plastic
DN

Max.: 1.5 in

Min.: 0.75 in

Pressure

1,300,000 Pa
(188.5 psi)

Temperature

Max.: 50 °C
(122 °F)

Min.: -15 °C
(5 °F)

Description

Technical Parameters: Valve size NPT/BSP 1 1/4" NPT/BSP 1 1/2" NPT/BSP 3/4" NPT/BSP 1" (Optional) Maximum working pressure 1.3 MPa Circulation medium Fluid, air Rated voltage DC5V/ DC12V DC24V AC/DC9-24V AC/DC-35V AC110-230V (Optional ) Wiring control methods CR2-01 CR2-02 CR3-01 CR3-02 CR3-03 CR3-04 CR3-05 CR4-01 CR5-01 CR5-02 CR7-01 CR7-02 CR7-04（Optional） Working current ≤500MA Open/close time ≤15S Life time 50000 times Valve Body material PVC Actuator material Engineering Plastics Sealing material EPDM & PTFE Actuator rotation 90° Max. torque force 10Nm Cable Length 0.5m,1.5m（Optional） Environment temperature -15℃～50℃ Liquid temperature 2℃～90℃ Manual override Yes No（Optional） Indicator Yes No （Optional） Protection class IP67
