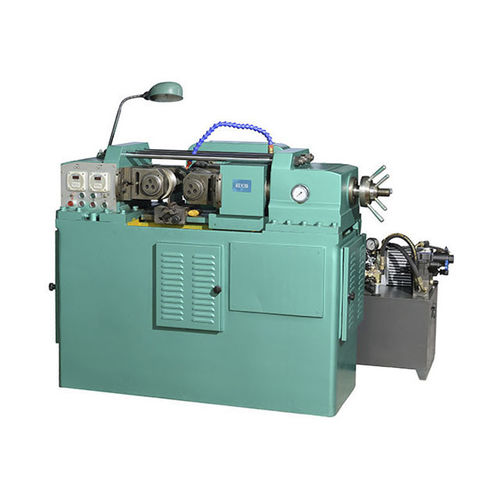

Thread rolling machine Z28-80B

with two rolling dies

Suitable for precision external threading, small modulus splines and worm ● Hydraulic power, pressure adjustable ● Gear box with high pressure is stable and reliable ● Easy to operate and adjust ● In feed and thru feed both way, high efficiency and stable Max pressure：160 KN Max diameter（Radial feed）：60 mm Max diameter（Axial feed）：20 mm Max pitch（Radial feed）：5 Max pitch（Axial feed）：4 Spindle speed：40 r/min Thread rolling die scope Max outside diameter：200 mm Max width：120 mm Dimension L×W×H (approx. mm)：1630×1400×1150 mm Main motor：5.5 KW
