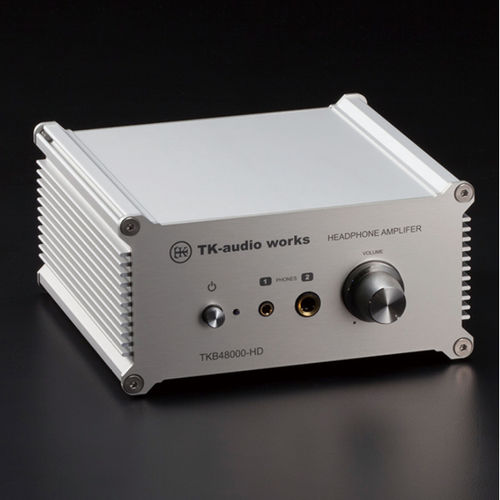

Heat sink enclosure AWA series

for desktop computersmodularextruded aluminum

Technical Data Protection class: IP40 Operating temperature: -40°C ~ +105°C Recommended torque: 1.0N • m (10kgf • cm) ■ Extruded aluminium frame manufactured with heat-sink sides. ■ Silver anodized end panels makes for a luxurious finish. ■ Conductivity is achieved by utilizing the contact between the unfinished end panels backside and inside of the frame. ■ PCB or chassis can be horizontally mounted by sliding into an inner-grooved body frame. ■ Suitable for industrial fanless PC, measuring instrument, digital audio amplifier and so on. ※Thermal resistance test condition • Ambient air cooling • Heat-sink fins are set perpendicular to the ground with temperature at 60°C. • Anodized aluminium extrusion • Heat source is applied on the opposite side (inner side) of the fins.
