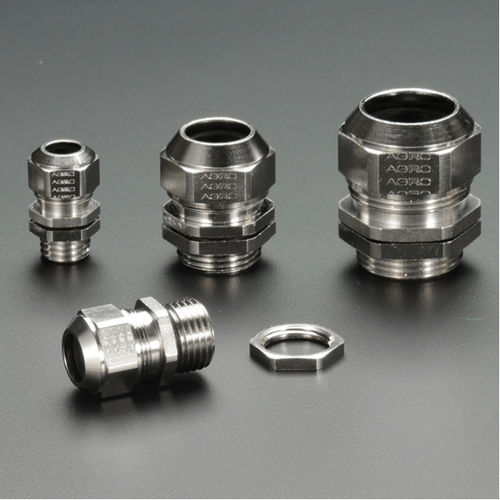

Metal cable gland AGM series IP68threadedstraight
Add to favorites
Compare this product
Characteristics
- Material
- metal
- Protection level
- IP68
- Other characteristics
- threaded, straight
- Cable diameter
Max.: 42 mm
(1.65 in)Min.: 2 mm
(0.08 in)- Thread diameter
Max.: 22.7 mm
(0.89 in)Min.: 6.2 mm
(0.24 in)- Operating temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)
Description
IP68 Protection class, under 10 bar / 30 min. condition. Superior water registant metal cable glands
Thread Size : M6 to M50 / PG7 to PG16. The widest selection for cable diameter from Φ2mm to Φ42mm.
■ High water protection IP68 (1bar / 30min) metal cable gland.
■ Wide selection, for M6 ~ M50 and PG7 ~ PG16.
Suitable for Φ2 mm ~ Φ42 mm cable.
Technical Data
Protection class: IP68 1bar / 30min
Operating temperature: -40°C ~ +100°C
Compliant with EN50262 Ver. A
AGM Series
Thicker sealing insert evenly hold a cable by having a larger holding area.
Remains durable even after repeated tightening / loosening.
Lamellar insert type
If over-tightened, it can cause the rubber bush or cable to deform, which can allow water to seep in.
