IP67 enclosure WP seriessmallpole-mountedrectangular
Add to favorites
Compare this product
Characteristics
- Construction
- small, pole-mounted
- Configuration
- rectangular
- Material
- ABS, ASA
- Application
- outdoor, network, for wireless access point
- Protection level
- dust-proof, waterproof, NEMA, UV-resistant, fire-resistant, IP67, IP68
- Other characteristics
- screw cover
- Width
Max.: 200 mm
(7.9 in)Min.: 52 mm
(2 in)- Height
Max.: 65 mm
(2.6 in)Min.: 18 mm
(0.7 in)- Depth
Max.: 280 mm
(11.02 in)Min.: 65 mm
(2.56 in)
Description

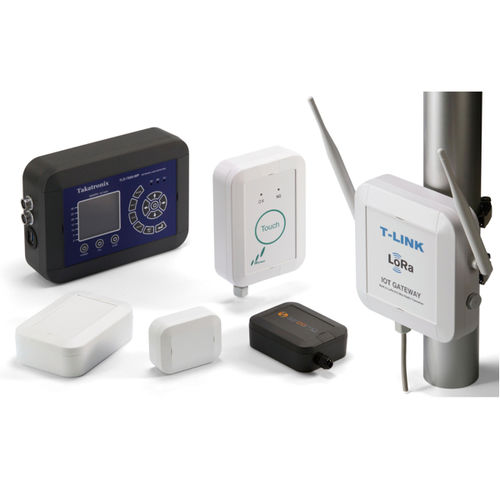

IP68 / IP67 waterproof plastic enclosure.
IP68 / IP67 protection class allows the unit to be used outdoors while protecting the internal components from dust and water.
Pole mounting is possible via an optional pole mounting bracket accessory.
【Available in 2 types】
White gray color : UV-resistant ASA plastic
Charcoal gray color : Flame-resistant ABS plastic (UL94V-0)
24 different selectable sizes are available. Mount on walls or brackets by simply opening the blind lids.
Protection class : IP68 / IP67
Operating temperature : ASA -30℃ ~ +60℃ ・ Flame-resistant ABS -10℃ ~ +50℃
