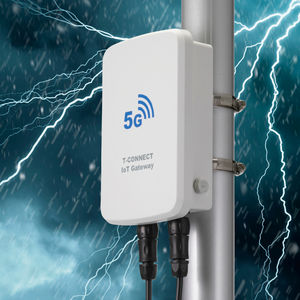

Outdoor enclosure BCAR serieswall-mountpole-mountedrectangular
Add to favorites
Compare this product
Characteristics
- Construction
- wall-mount, pole-mounted
- Configuration
- rectangular, square
- Material
- ABS
- Application
- electronic equipment, outdoor, network
- Protection level
- waterproof, NEMA, IP65
- Other characteristics
- with transparent door, with hinged door, single door, with stainless steel latch
- Width
Min.: 90 mm
(3.5 in)Max.: 630 mm
(24.8 in)- Height
Min.: 120 mm
(4.7 in)Max.: 830 mm
(32.7 in)- Depth
Min.: 74 mm
(2.91 in)Max.: 285 mm
(11.22 in)
Description
IP65 open/closing type ABS plastic box equipped with latch/hinge system and an easy snap-on roof attachment.
Applicable for various uses in fields such as FA, network communication, power switchbox controls and so on.
【Line-up】
White gray ABS cover types : 50 different sizes
Transparent polycarbonate cover types : 46 different sizes
Protection class: IP65 (equivalent to NEMA6 rating)
Operating Temperature：-10℃～+60℃
Material : ABS, Polycarbonate (Transparent cover only), Polyurethane gasket, Stainless steel latch
IP65 open/closing type polycarbonate box equipped with latch/hinge system and an easy snap-on roof attachment..
Made of light gray UL94V-0 polycarbonate, which has good heat resistance properties.
Applicable for various uses in fields such as FA, network communication, power switchbox controls and so on.
45 different sizes available.
Protection Class : IP65 (equivalent to NEMA6 rating)
Operating Temperature：-20℃～+75℃
Flammability：UL94V-0
Material : Polycarbonate, Polyurethane gasket, Stainless steel latch
PRODUCT NO. / DIMENSIONS
