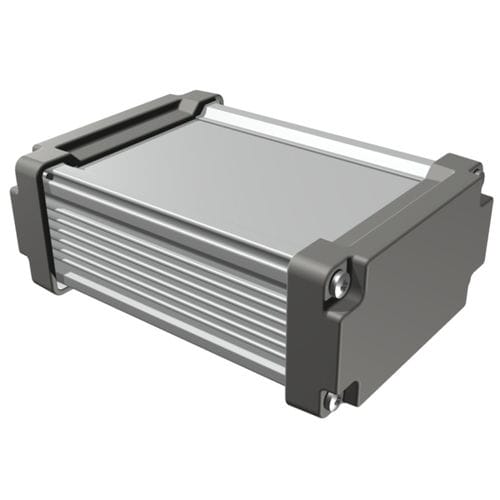

Heavy-duty enclosure AWN seriesdesktoprectangularextruded aluminum
Add to favorites
Compare this product
Characteristics
- Construction
- desktop
- Configuration
- rectangular
- Material
- extruded aluminum
- Application
- industrial, for controllers, for power supplies, for measuring devices, for cameras
- Protection level
- waterproof, rugged, heavy-duty, IP68, EMC-shielded, harsh environments
- Other characteristics
- heat sink
- Width
Min.: 55 mm
(2.2 in)Max.: 206 mm
(8.1 in)- Height
Min.: 35 mm
(1.4 in)Max.: 81 mm
(3.2 in)- Depth
Min.: 65 mm
(2.56 in)Max.: 310 mm
(12.2 in)
Description
IP68 waterproof and heat dissipation enclosure design.
Selectable in both Normal or EMC Shielded type.
The extruded aluminum frame and diecast aluminum panels makes it extremely suitable to be used in harsh environments where waterproofing and heat dissipation is essential.
PCB or mounting plate can be mounted by sliding it horizontally into inner-grooved body frame.
Suitable for measuring instruments, industrial control box, and industrial camera housing, among others.
Protection class: IP68 (24 hours / 1m depth - equivalent to NEMA6P rating)
Operating temperature: -40℃ ~ +105℃
Recommended torque: 1.0N・m (10kgf・cm)
