Handheld enclosure LCS seriesrectangularABSfor instrumentation
Add to favorites
Compare this product
Characteristics
- Construction
- handheld
- Configuration
- rectangular
- Material
- ABS
- Application
- for instrumentation, medical, for controllers, for measuring devices, for wireless access point
- Protection level
- waterproof, impact-resistant, IP40
- Width
74 mm, 81 mm, 85 mm, 101 mm
(2.9 in, 3.2 in, 3.3 in, 4 in)- Height
24 mm, 32 mm, 40 mm
(0.9 in, 1.3 in, 1.6 in)- Depth
120 mm, 141 mm, 151 mm, 171 mm
(4.72 in, 5.55 in, 5.94 in, 6.73 in)
Description

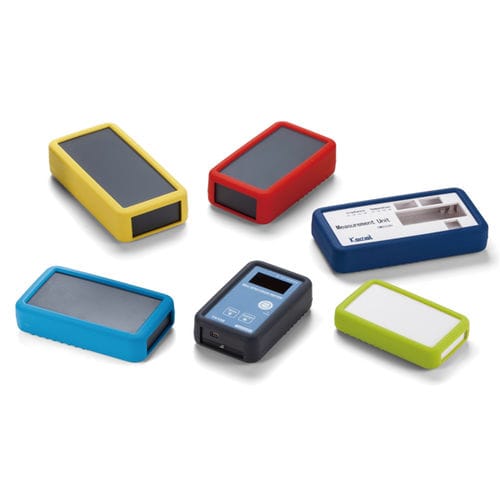

Plastic enclosure with silicone cover providing not only comfortable and anti-slip grip, but also protection from drop impact.
Manufactured from flame-resistant ABS UL94V-0.
Available in 9 different battery compartment types: AAx2, AAx3, AAx4, AAAx2, AAAx3, AAAx4, AAAx6, 9Vx1, and no battery compartment type.
Positive (+) / negative (-) pole mark are incused within each battery compartment.
Suitable for measuring instruments, testing devices, industrial controller, wireless communication devices, medical devices and so on.
9 different sizes in 14 color variations are available.
Protection class: IP40
Operating temperature: -10℃ ~ +60℃
