Enclosure with flange EXF series
wall-mountrectangularaluminium

Enclosure with flange - EXF series - TAKACHI Electronics Enclosure Co., Ltd. - wall-mount / rectangular / aluminium
Enclosure with flange - EXF series - TAKACHI Electronics Enclosure Co., Ltd. - wall-mount / rectangular / aluminium
Enclosure with flange - EXF series - TAKACHI Electronics Enclosure Co., Ltd. - wall-mount / rectangular / aluminium - image - 2
Enclosure with flange - EXF series - TAKACHI Electronics Enclosure Co., Ltd. - wall-mount / rectangular / aluminium - image - 3
Enclosure with flange - EXF series - TAKACHI Electronics Enclosure Co., Ltd. - wall-mount / rectangular / aluminium - image - 4
Enclosure with flange - EXF series - TAKACHI Electronics Enclosure Co., Ltd. - wall-mount / rectangular / aluminium - image - 5
Add to favorites
Compare this product


Characteristics

Construction
wall-mount, with flange
Configuration
rectangular
Material
aluminium
Application
industrial, electronic equipment, network
Other characteristics
extruded
Width

Max.: 287.5 mm
(11.3 in)

Min.: 60.6 mm
(2.4 in)

Height

Max.: 128.8 mm
(5.1 in)

Min.: 27.6 mm
(1.1 in)

Depth

Max.: 304 mm
(11.97 in)

Min.: 50 mm
(1.97 in)

Description

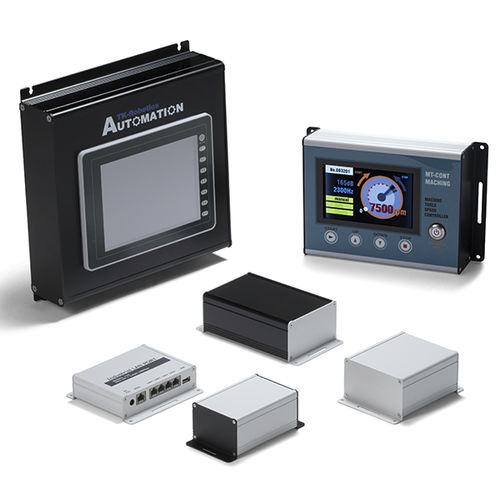

Flanged panel type or flanged bracket type extruded aluminium enclosure. Equipped with flanged panel or bracket for easy wall mounting. Anodized finish with clear coating (except for flanged bracket). Available in 73 sizes and selectable in 4 different color combinations : Silver / Silver (SS), Silver / Black(SB), Black / Silver(BS), Black / Black(BB) *Flanged panel type EXF6-□, 8-□, 11-□ and 14-□ Flanged bracket type EXF19-□, 23-□ and 29-□

Catalogs

EXF series
EXF series
15 Pages
