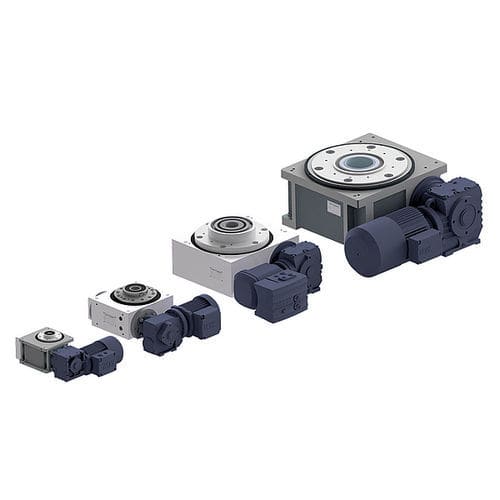

Rotary indexer TT

cam

Common applications The rotary indexer TT is often used in the assembly technology, the testing equipment, the welding technology, the printing, the pressing, the automotive industry, the microelectronics, the food industry, the medical technology and the cosmetic industry. Features and user benefits • Reliable, robust drum cam roundtable • for all applications • Construction diameter 75 mm – 2800 mm • Fixed divisions 2 – 96 or flexible • through NC technology • Switching times of 0,16 s – 5 s • Gentle starting and stopping across • the switching cam • Large, vertically hollow shaft • Standard accuracy 15" – 35" • New: Extreme indexing accuracy of 0.02mm • – Independent of the construction diameter • Tapered rollers or cross roller bearing at the • inner diameter of the roll star • Low-cost variant with aluminum housing • Maintenance through oil bath lubrication • Stop operation, continuous operation or • reversing design possible • All installation positions possible
