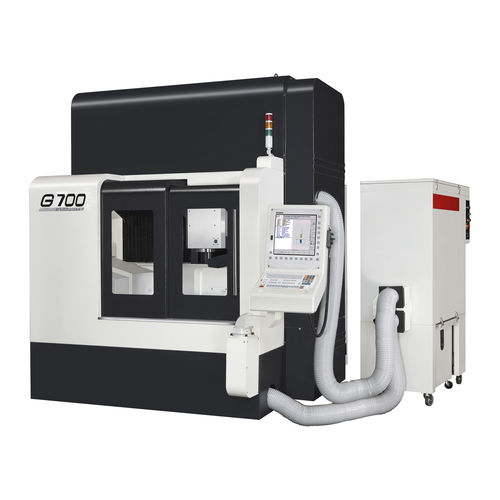

3-axis machining center G700

verticaldouble-columnfor aeronautics

3-Axis-CNC-machine center, for use in constructing and forming tools in aerospace technology or in the pharma industry. Extremely rigid and thermally stable, movable control panel. Ladder design of the bridge provides a greater support for the head casting; close proximity of spindle to bridge reduces overhang. Built for high quality performance and precision. Type of spindle: Direct-Drive/vertical Spindlespeed: 25000 rpm Motorpower: 18.5 kW Travel: X-Axis: 750 mm Y-Axis: 600 mm Z-Axis: 500 mm each with 3.5 kW power and a travel of 32 m per minute of rapid traverse ACT-Type: Swing Arm Magazine capacity: 24 General information: Air requirements: 6-8 Bar Electrical power consumption: 50 kVA / 125 A Machine net weight: 7000 kg
