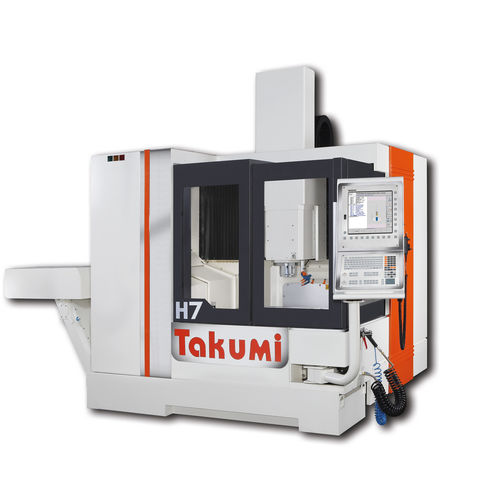

3-axis machining center H7
verticalfor aeronauticshigh-speed

3-axis machining center
3-axis machining center
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Applications
for aeronautics
Other characteristics
high-speed, high-precision, high-performance, rigid
X travel

750 mm
(29.53 in)

Y travel

600 mm
(23.62 in)

Z travel

500 mm
(19.69 in)

Rotational speed

15,000 rpm
(94,248 rad.min-1)

Power

15 kW
(20.39 hp)

Description

3-Axis-CNC-machine center, for use in constructing and forming tools in aerospace technology or in the pharma industry. Extremely rigid and thermally stable, movable control panel. Ladder design of the bridge provides a greater support for the head casting; close proximity of spindle to bridge reduces overhang. Built for high quality performance and precision. Type of spindle: Direct-Drive/vertical Spindlespeed: 15.000 rpm Motorpower: 15 kW Travel: X-Axis: 750 mm Y-Axis: 600 mm Z-Axis: 500 mm each with 4,5 kW power and a travel of 32 m per minute of rapid traverse ACT-Type: Swing Arm Magazine capacity: 24 General information: Air requirements: 6-8 Bar Electrical power consumption: 50 kVA / 125 A Machine net weight: 7.000 kg
