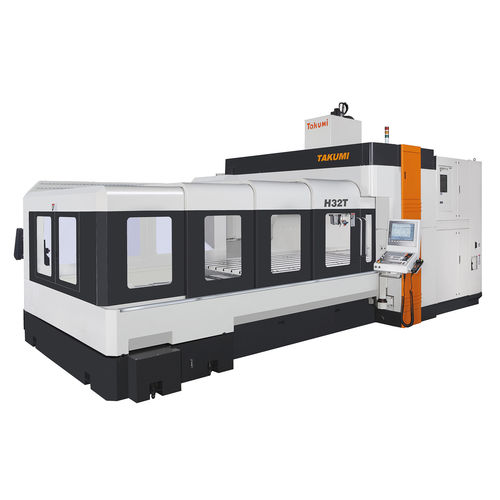

3-axis machining center H32T

verticalbridgefor aeronautics

3-Axis-CNC-machine center, for use in constructing and forming tools in aerospace technology or in the pharma industry. Extremely rigid and thermally stable, movable control panel. Ladder design of the bridge provides a greater support for the head casting; close proximity of spindle to bridge reduces overhang. Built for high quality performance and precision. Type of spindle: Direct-Drive/vertical Spindlespeed: 15000 rpm Motorpower: 18,5 kW Travel: X-Axis: 3200 mm Y-Axis: 2250 mm Z-Axis: 800 mm with 14 kW power on X-Axis, 9 kW power on Y-Axis and 5.5 kW on Z-Axis and a travel of 16 m (X) to 20 m (Y,Z) per minute of rapid traverse. ACT-Type: Swing Arm Magazine capacity: 30 General information: Air requirements: 6-8 Bar Electrical power consumption: 75 kVA / 160 A Machine net weight: 37000 kg
