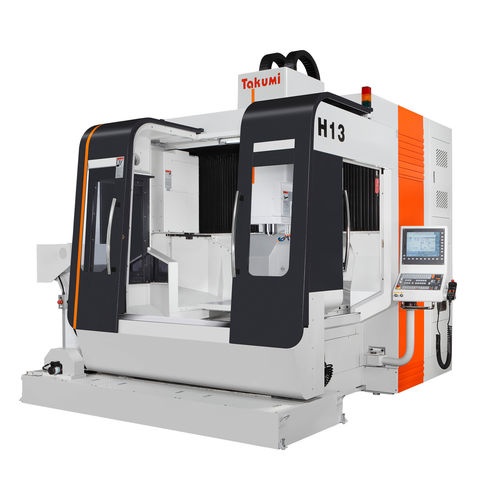

3-axis machining center H 13
verticalbridgefor aeronautics

Add to favorites

Compare this product

Characteristics

Number of axes: 3-axis
Spindle orientation: vertical
Structure: bridge
Applications: for aeronautics
Other characteristics: high-speed, high-precision, high-performance, rigid
X travel: 900 mm
(35.43 in)
Y travel: 1,300 mm
(51.18 in)
Z travel: 700 mm
(27.56 in)
Rotational speed: 15,000 rpm
(94,248 rad.min-1)
Power: 18.5 kW
(25.15 hp)

Description

3-Axis-CNC-machine center, for use in constructing and forming tools in aerospace technology or in the pharma industry. Extremely rigid and thermally stable, movable control panel. Ladder design of the bridge provides a greater support for the head casting; close proximity of spindle to bridge reduces overhang. Built for high quality performance and precision. Type of spindle: Direct-Drive/vertical Spindlespeed: 15000 rpm Motorpower: 18.5 kW Travel: X-Axis: 900 mm Y-Axis: 1300 mm Z-Axis: 700 mm each with a power of 5.5 kW and a travel of 30 m per minute of rapid traverse. ACT-Type: Swing Arm Magazine capacity: 30 General information: Air requirements: 6-8 Bar Electrical power consumption: 75 kVA / 160 A Machine net weight: 18000 kg
