3-axis machining center H12
verticalbridgehigh-speed

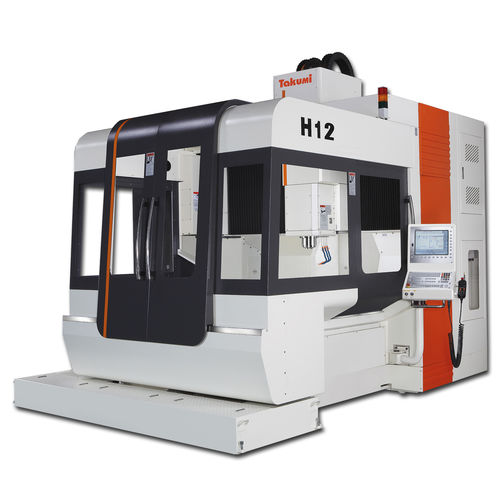

3-axis machining center - H12 - Takumi | HURCO Werkzeugmaschinen GmbH - vertical / bridge / high-speed

Add to favorites

Compare this product

Characteristics

Number of axes: 3-axis
Spindle orientation: vertical
Structure: bridge
Other characteristics: high-speed, high-precision, high-performance, rigid
X travel: 1,350 mm
(53.15 in)
Y travel: 950 mm
(37.4 in)
Z travel: 600 mm
(23.62 in)
Rotational speed: 15,000 rpm
(94,248 rad.min-1)
Power: 15 kW
(20.39 hp)

Description

3-Axis-CNC-machine center, for use in constructing and forming tools in aerospace technology or in the pharma industry. Extremely rigid and thermally stable, movable control panel. Ladder design of the bridge provides a greater support for the head casting; close proximity of spindle to bridge reduces overhang. Built for high quality performance and precision. Type of spindle: Direct-Drive/vertical Spindlespeed: 15000 rpm Motorpower: 15 kW Travel: X-Axis: 1350 mm Y-Axis: 950 mm Z-Axis: 600 mm with 7 kW power on X- and Z-Axis and 4.5 kW power on Y-Axis and a travel of 30 m per minute of rapid traverse. ACT-Type: Swing Arm Magazine capacity: 30 General information: Air requirements: 6-8 Bar Electrical power consumption: 60 kVA / 160 A Machine net weight: 13000 kg
