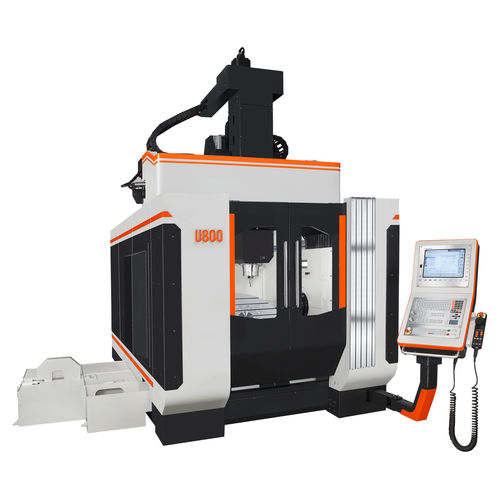

3-axis machining center U 800

verticalbridgehigh-speed

3-Axis-CNC-machine center, for use in constructing and forming tools in aerospace technology or in the pharma industry. Extremely rigid and thermally stable, movable control panel. Ladder design of the bridge provides a greater support for the head casting; close proximity of spindle to bridge reduces overhang. Built for high quality performance and precision. Type of spindle: Direct-Drive/vertical Spindlespeed: 20000 rpm Motorpower: 28 kW Travel: X-Axis: 800 mm Y-Axis: 1000 mm Z-Axis: 750 mm with a travel of 48 m per minute of rapid traverse. ACT-Type: Swing Arm Magazine capacity: 32 General information: Air requirements: 6 Bar Electrical power consumption: 80 kVA / 80 A Machine net weight: 18000 kg
