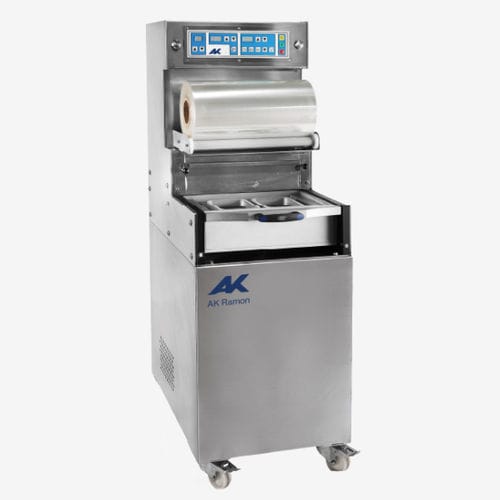

Automatic tray sealer TS-550
linearfor the food industryvacuum

automatic tray sealer
automatic tray sealer
automatic tray sealer
automatic tray sealer
Add to favorites
Compare this product


Characteristics

Type
linear
Operational mode
automatic
Other characteristics
for the food industry, vacuum, for trays

Description

• Totally manufactured in AISI 304 stainless steel. • Die set in anodized aluminum. • Automatic tray sealer. • Ergonomic and robust model. • Perfect for transporting food without loss of liquids or sauces. • Easy change of molds are interchangeable in a few seconds. • Fast heating at the selected temperature. • It allows to work with different types of tray materials, PP, PET, ALUMINIUM… • Busch pump 20 m³/h. • Easy cleaning and maintenance. • Digital control panel. • Vacuum control by sensor. • Gas flushing entrance control by sensor. • Sealing temperature and time regulation. • VAC-STOP push button, finish the vacuum & continue the process. • Maintenance push button control. • Digital panel equipped with 99 memory programs. • Monitoring Step-by-step of the cycle through LEDs. • Voltage: 400 V/ 3ph/ 50 Hz. Standard molds with perimeter film cutting: 1/2 GN (320x260mm) – 1 tray. 1/4 GN (260x160mm) – 2 trays. 1/8 GN (168x130mm) – 4 trays. Standard molds with film cut at the back, non-perimeter: 1/2 GN (320x260mm) – 1 tray. 1/4 GN (260x160mm) – 2 trays. 1/8 GN (168x130mm) – 4 trays. Any type and shape of mold can be manufactured according to the customer trays. BUSCH pumps are the industry quality standard. They owe their robustness to rotary vane technology, with proven recirculating oil lubrication, which guarantees a high and constant degree of vacuum capable of withstanding the most demanding operating conditions.

VIDEO
