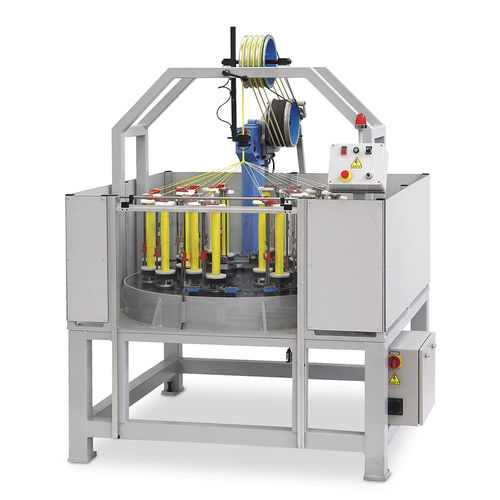

Rope braiding machine 20/208

circularvertical

Gauge 208 is ideal for manufacturing very long braided ropes without splices with a high degree of precision. It allows working with synthetic fibers under several kilograms of tension, whether to produce the core, the cover, or a rope directly. It is very popular among manufacturers of naval and safety ropes. Ratera provides various useful accessories for achieving the desired final product and adapting to the needs of each costumer. • Different take off systems depending on the diameter range desired to produce. There are mechanical take off systems attached to the braiding machine for ropes up to Ø21mm or autonomous take off systems with electronic pitch control for ranges up to Ø50mm. • Different types of take ups at the braiding point with the option of a motorized zipper for adjustment. • Different guides and stoppind devices for the core. • Integral safety protections for personnel. • Ratera offers a wide range of take ups for folding the braiding thread, either in Ratera metal bobbins or in synchronized bobbin collectors. • Ratera offers the possibility of adapting to customer bobbins. • Customized electrical panel. From the basic panel operated with buttons and basic protections to complete systems with touchscreen, PLCs, speed controls, recipes, and connectivity. Carriers and bobbins for Ecartamiento 208 Gauge 208 carrier is characterized by its robustness and ability to braid threads at high tension. The brake system with a shoe brake prevents plunger impact and improves its durability. Its metal body and reinforced closure structure ensure stability and precision.
