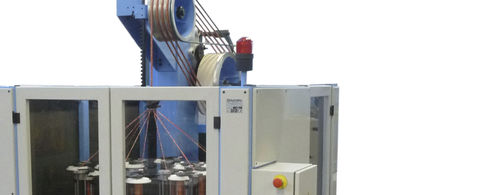

Rope braiding machine 240

circularvertical

Gauge 240 stands as the larger counterpart to the Gauge 208. With a similar carrier configuration, it boasts a 43% increase in bobbin capacity while upholding comparable levels of speed and product quality. It is used for manufacturing very long braided ropes without splices with a high degree of precision. It allows working with synthetic fibers under several kilograms of tension, whether to produce the core, the cover, or a rope. It is popular among manufacturers of naval and safety ropes. Ratera provides various useful accessories for achieving the desired final product and adapting to the needs of each costumer. • Different pulling systems depending on the diameter range desired to produce. There are mechanical pulling systems attached to the braiding machine for ropes up to Ø21mm or autonomous pulling systems with electronic pitch control for ranges up to Ø50mm. • Different types of take ups at the braiding point with the option of a motorized zipper for adjustment. • Different guides and stoppind devices for the core. • Integral safety protections for personnel. • Ratera offers a wide range of take ups for folding the braiding thread, either in Ratera metal bobbins or in synchronized bobbin collectors. • Ratera offers the possibility of adapting to customer bobbins. • Customized electrical panel. From the basic panel operated with buttons and basic protections to complete systems with touchscreen, PLCs, speed controls, recipes, and connectivity.
