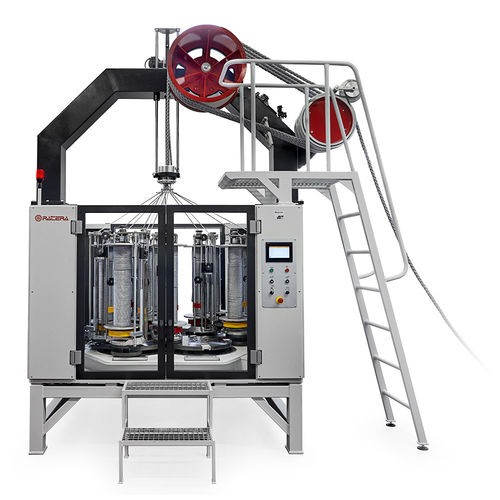

Rope braiding machine 12/574

circularvertical

Specifically, we are talking about the 12-carrier braiding machine Gauge 574. It can braid 220 m of 56 mm diameter rope without having to make splices. However, the machine can manufacture up to Ø70mm and is specially designed to make very long ropes without splices of small diameter. Ratera provides various useful accessories for achieving the desired final product and adapting to the needs of each costumer. • Compact take off systems with a porch, equipped with a Ø700mm diameter wheel to produce a maximum Ø70mm. • Metal ladder for handling the pulling. • Different types of take ups at the braiding point with the option of a motorized zipper for adjustment. • Different guides and stoppind devices for the core. • Integral safety protections for personnel. • Ratera offers a wide range of take ups for folding the braiding thread, either in Ratera metal bobbins or in synchronized bobbin collectors. • Ratera offers the possibility of adapting to customer bobbins. • Customized electrical panel. From the basic panel operated with buttons and basic protections to complete systems with touchscreen, PLCs, speed controls, recipes, and connectivity. Carriers and bobins for Gauge 574 Designed to braid thick threads up to Ø20mm, this carrier maintains a very stable tension control and allows braiding with high quality for both small and large diameters. Equipped with rollers with lateral bearings , it offers the possibility of customization with a rotating head in the tensioner. Brake system through easily adjustable drum. Upper and lower supports of the bobbin with bearings. Aluminum bobbin with interchangeable plastic material drag.
