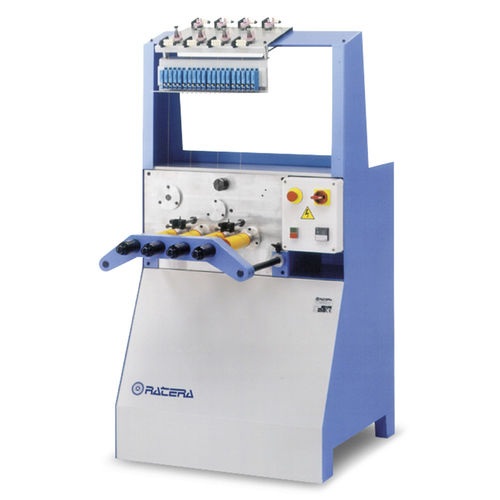

Semi-automatic winding machine 4PVLU/330

motorizedprocessprecision

• 4 spindles • Bobbin maximum diameter: 80 mm. • Bobbin maximum traverse: 330 mm. • 3 speeds (50 Hz): 1160 / 2175 / 3262 rpm • Motor power: 0,75 Kw / 1 CV • Pitch adjustment: by hand from 0 up to 11 mm. • Side thrust (Newton): maximum 110 N • Length: 835 mm. • Width: 775 mm. • Height: 1655 mm. • Weight: 93 Kg. Ratera Semi-Automatic Winders is focused on adapting the winding process to each specific need. A good start leads to a good ending. Achieve control, precision, quality, and robustness from the very beginning of the braiding production with Semi-Automatic Winders. Ratera provides various useful accessories wich are necessary to obtain the desired final product and adapting to the needs of each factory. • Tensioners for multiple threads and tension control: Ceramic discs, ball tensioners, electronically controlled feeders with constant tension, etc. • Customized electrical panel, with speed control or metering options. • Sensors for multiple threads per bobbin. • Multiple adjustment points to achieve perfectly filled bobbins. • Ceramics and finishes for any type of fiber: Textile, Synthetic, Metallic, Fiberglass, Carbon Fiber, etc. Taking care of the product is esential for a good braiding. • Mechanical or motorized linear distributor, adjustable in both cases to obtain the appropriate pitch between every cycle. • Optional protection for the winding area.
