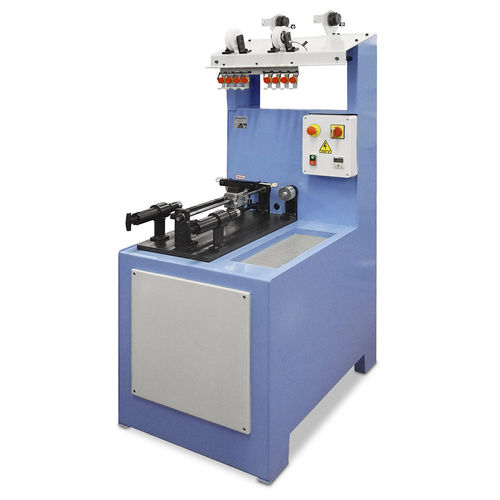

Semi-automatic winding machine 2PVLU/350

motorizedprocessprecision

• Nr of Spindles: 2 • Maximum bobbin diameter: 110 mm. • Maximum bobbin traverse: 350 mm. • Speed Maximum 2175 R.P.M • Motor power: 0.75 KW/1CV • Pitch adjustment: by hand from 0 to 11 mm. • Side thrust (Newtons): 110N maximum. • Length in mm: 850 • width in mm: 650 • Height in mm: 1567 • Weight: 191 kg. Ratera Semi-Automatic Winders is focused on adapting the winding process to each specific need. A good start leads to a good ending. Achieve control, precision, quality, and robustness from the very beginning of the braiding production with Semi-Automatic Winders. Ratera provides various useful accessories wich are necessary to obtain the desired final product and adapting to the needs of each factory. • Tensioners for multiple threads and tension control: Ceramic discs, ball tensioners, electronically controlled feeders with constant tension, etc. • Customized electrical panel, with speed control or metering options. • Sensors for multiple threads per bobbin. • Multiple adjustment points to achieve perfectly filled bobbins. • Ceramics and finishes for any type of fiber: Textile, Synthetic, Metallic, Fiberglass, Carbon Fiber, etc. Taking care of the product is esential for a good braiding. • Mechanical or motorized linear distributor, adjustable in both cases to obtain the appropriate pitch between every cycle. • Optional protection for the winding area.
