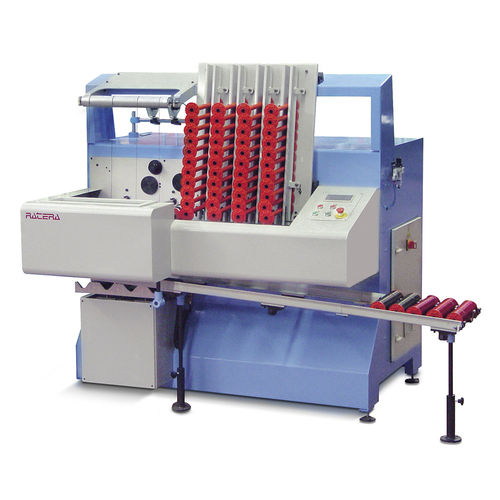

Yarn winding machine BA-4U/E140

automaticmotorizedprocess

• Fully-automatic winding machine of 4 spindles • Distribution box to adjust the pitch between 0 to 16 mm • For flanged bobbins form Ø 55 mm to Ø 78 mm and 170 mm to 280 mm traverse. • Heads speed from 770 rpm to 3.000 rpm. • Yarn speed from 60 to 330 meters per minute • All the movements are controlled by a PLC (automaton) • Automatic bobbin feeding • Meter counter Ratera Automatic Winders are adapted to each need. They are highly efficient and productive machines, and with just a few of them, entire braiding factories can be supplied. Achieve control, precision, quality, and robustness from the very beginning of braid production with Automatic Winders. A good start leads to a good finish. Ratera provides a wide range of useful accessories necessary for obtaining the desired final product and adapting to the needs of each factory. • A wide range of tensioners for multiple threads and tension control: Ceramic Discs for textiles, ball tensioners for coarse products, or constant tension electronic feeders for very fine yarns such as suture. • The touchscreen of the new winder is useful to adjust winding and production parameters. All values can be stored as recipes in the PLC, increasing set-up speed in a user-friendly manner. • Cutting is both mechanical and electrical, depending on the fiber. There is an option for automatic insertion of clips to hold loose ends after cutting. Ideal for multiple monofilament strands. • Option for heads with independent traction and metering, to reduce product waste to practically zero.
