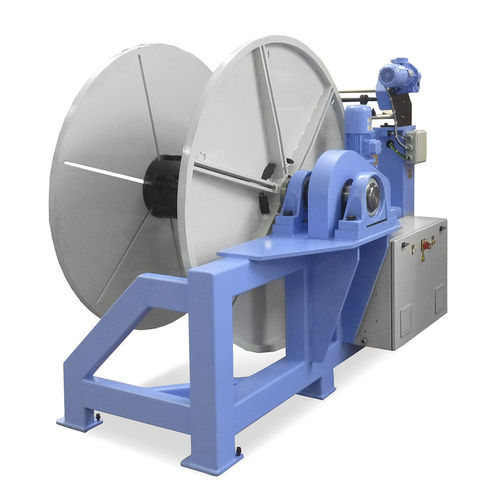

Motorized coiler take-up

cablefor wirefor wire processing machines

• Flange diameter: 1700 mm. • Diameter nucleous: 400 mm. • Capacity: 1.649.637 cm³. • Distributing system: by a distributer box • Adjustable traverse from 565 mm. up to 764 mm. • Adjustable pitch from 20 mm. up to 85 mm. • Adjustable Take up tension: from 4 Kg. to 80 Kg. • Power: Motor reducer of 0,55 Kw. • Motorized scroll. • Frequency shifter to control the take up tension included. • Take up pitch controlled electronically. Ratera specializes in manufacturing take-up units (also called collectors) that work synchronized with the braiding machine or other equipment. The take-up units are used to collect the braided product on a spool or reel. In smaller braiders, the take-up unit is directly incorporated and welded onto the braider according to the customer’s needs. For larger braiders where there is a high capacity requirement, autonomous collectors are the most suitable option. Take-up units for parallel winding to metallic reels. They can work autonomously thanks to a motorized system and clutch mechanism. Space optimization and perfect parallel folding can be achieved thanks to its rolling-ring device with enables winding pitch selection. Several reel sizes are available: Ø 800 x 400 (150,796 cm³) Ø 1050 x 600 (444,142 cm³) Adapted to customer’s bobbin. (Wood, metallic, plastic, … )
