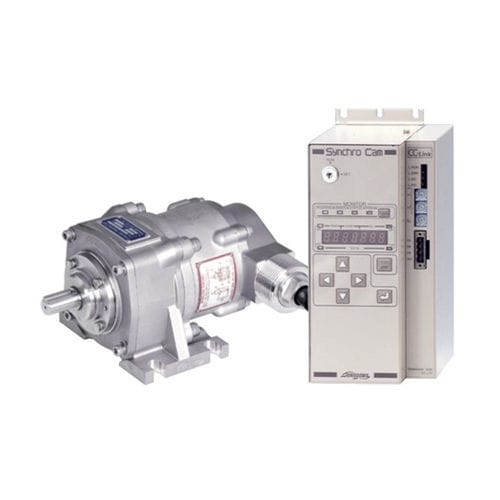

Single-axis positioning system Smartcam series

rotaryindustrialcompact

Smartcam System is an absolute type-position detection system equipped with electronic cam function. Sensors (Transmitters) of the system come with resolvers excellent in environment resistance or encoders with high accuracy and high resolution. Combining the sensors with converters, we provide you with highly accurate and reliable systems. Depending on the combination with the converter, three types; a 1 turn type, a multi-turn type, and a 1 turn/multi-turn switching type are available. Steel, Crane, Packing Wrapping, Food, Printing machine, Press machine Over the past 70 years, we have been engaged in research, development, and manufacture of FA equipment such as Synchro, Resolver, Gyro, and so on. Based on long-standing experience and a wealth of know-how accumulated through the production of control equipment for steel plants and water processing, we proudly propose a smart position detecting system” Smartcam”. In addition to the conventional systems, Smartcam has new lineups equipped with absolute encoders for higher accuracy and resolution. We recommend Smartcam, with confidence, as the right position detector that ensures you high reliability, safety, and labor efficiency. Features Smart Cam is a programmable Electronic Cam signal output unit, which replaces conventional mechanical cam switching system or pulse detecting units, used for general position control of machines. Sensor unit is a brushless resolver, Smartsyn, known as an environmentally reliable long-life unit. The sine/cosine analog signal proportional to the shaft rotation is converted to digital angle data via R/D converter incorporated in the control unit.
