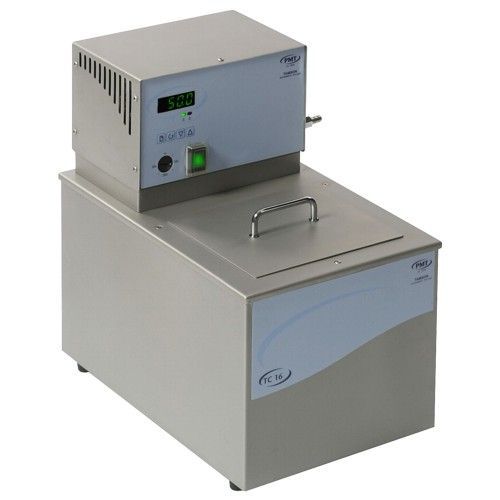

Heating circulator TC16

The TC16 is used for precise temperature control and offers high reliability under rough circumstances. The TC16 is made of stainless steel and is an excellent solution for either internal or external temperature control.  The insulation of the bath and electronic design result in an extremely stable working temperature of ± 0.02°C. The set point temperature can be set in steps of 0.1°C. The temperature is displayed in 0.1°C. However the controller has an internal accuracy of 0.01°C. This two decimal-readout also is available from the RS232 and the free Tamcom software. The TC16 can be operated from ambient up to 250°C (41°F..482°F). Due to the "self-heating" of the stirring mechanism and when using a top lid, the minimum temperature lies approximately 5°C above the ambient temperature. When using the standard built-in cooling coil the minimum operating temperature lies approximately ±5°C above the temperature of the cooling liquid circulating inside the cooling coil. Minimum working temperature when using external cooling lies around 10°C. The bath conforms to CE regulation and is equipped with a mechanical resettable safety thermostat and a drain to empty the bath. Main Features: • Suitable for internal and external applications • Stainless steel, robust bath • Easy to read display • Very quiet • Easy switching between internal and external circulation • Insulated bath provides extreme temperature stability • Integrated cooling coil for counter-cooling • Bath drain The TC16 is available in the following voltages/frequencies: • TC16 230V/50-60Hz (P/N: 00T0671) • TC16 115V/60Hz (P/N: 00T0861)
